In stock
- SKU
- U-SHEF-D-B-1800X231
Prices: Price includes VAT and delivery
Delivery: 2-4 working days
Guarantee: 5 years
Returns: 14 days
Fuel Source: Central Heating
Installation: Suitable for pipes coming up from the floor or out of the wall, includes brackets and wall fixings
Need help choosing?
Use our buying guide, heat calculator or contact our experts
| Fuel Type | Central Heating |
|---|---|
| Product Type | Radiators |
| Delivery | 2-4 working days |
| Installation | Suitable for pipes coming up from the floor or out of the wall, includes brackets and wall fixings |
| Style | Modern |
| Orientation | Vertical |
| BTU (t60) | 4661 |
| Watts | 1365 |
| Height (mm) | 1800 |
| Width (mm) | 231 |
| Inlet Connection | 1/2" |
| Inlet Location: Side Or Underside | Side |
| Pipes Through Wall | Recommended to use Corner Valves |
| Pipes Through Floor | Recommended to use Angled Valves |
| Depth wall to front (mm) | 109 |
| Wall to centre of inlet (mm) | 66 |
| Pipe Centres (mm) | Width of radiator plus valves |
| Colour | Black RAL 9004 |
| Outer Finish | Powder Coat |
| Core Material | Mild Steel |
| Warranty | 5 years |
| Certification | CE, EN442 |
| Manufactured | Europe |
| Returns | 14 days |

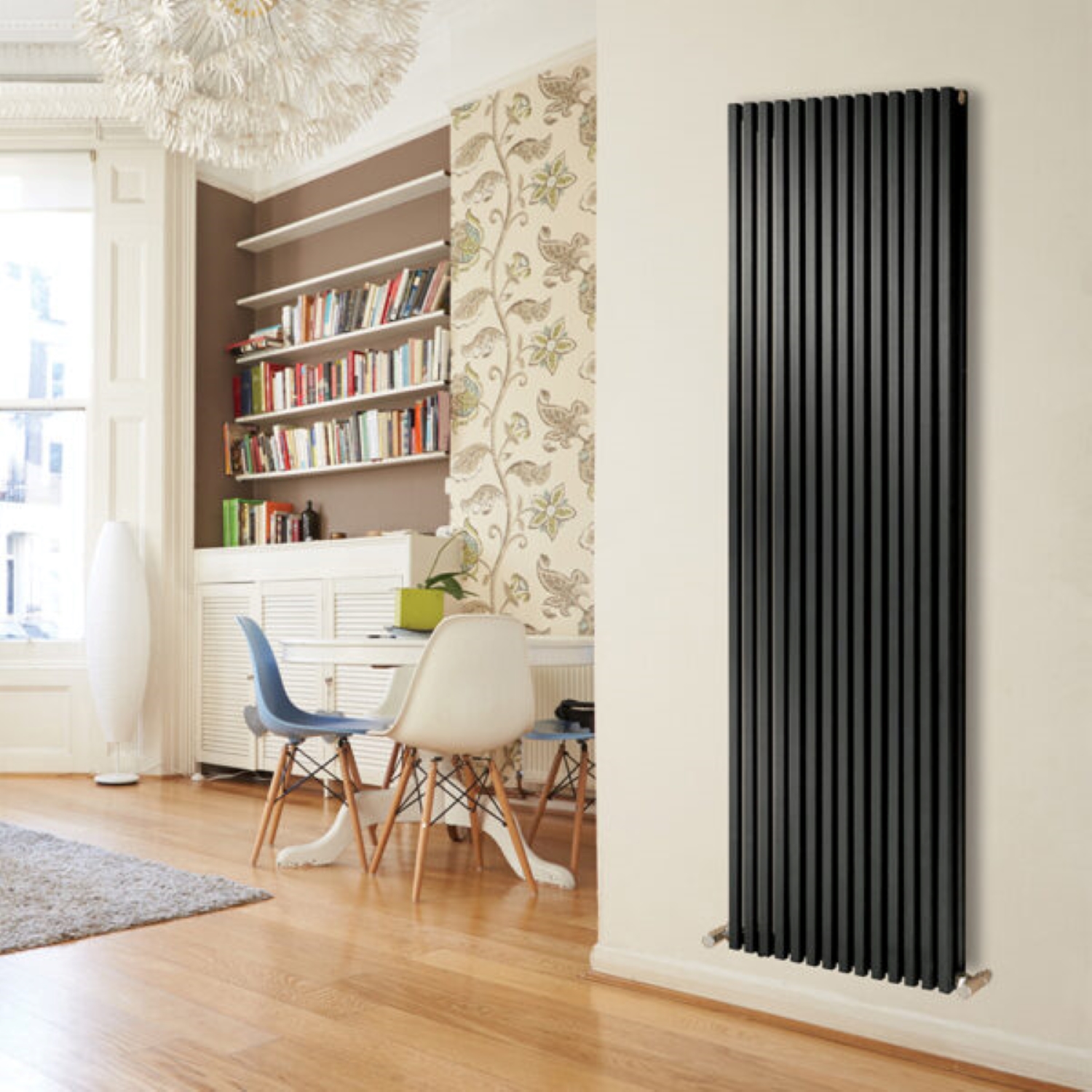

Black square bar vertical designer radiator 1800mm x 231mm
The Sheffield mild steel designer radiator is available in both single and double panel with a large range of vertical and horizontal sizes to suit any space. The 25mm x 25mm D – profile vertical sections give an optimum heat output while still delivering an elegant and contemporary design, with three stock colour options to choose from (white, grey and black) the radiator can blend into the background for a minimalistic look or contrast as a feature in the room.
|
Height (mm) |
Length (mm) |
BTUs (dt60) |
Watts (dt60) |
|
420 |
611 |
3287 |
962 |
|
420 |
839 |
4520 |
1323 |
|
420 |
1067 |
5753 |
1684 |
|
420 |
1219 |
6575 |
1925 |
|
420 |
1371 |
7397 |
2166 |
|
600 |
535 |
4011 |
1174 |
|
600 |
611 |
4584 |
1342 |
|
600 |
839 |
6305 |
1846 |
|
600 |
1067 |
8030 |
2351 |
|
600 |
1219 |
9177 |
2687 |
|
600 |
1371 |
10324 |
3023 |
|
600 |
1599 |
12045 |
3526 |
|
1500 |
383 |
3680 |
1078 |
|
1800 |
383 |
4365 |
1278 |
|
1800 |
611 |
6984 |
2045 |
|
1500 |
231 |
3608 |
1056 |
|
1500 |
383 |
6013 |
1761 |
|
1500 |
535 |
8418 |
2465 |
|
1800 |
231 |
4661 |
1365 |
|
1800 |
383 |
7768 |
2275 |
|
1800 |
459 |
9321 |
2729 |
|
1800 |
535 |
10875 |
3184 |
