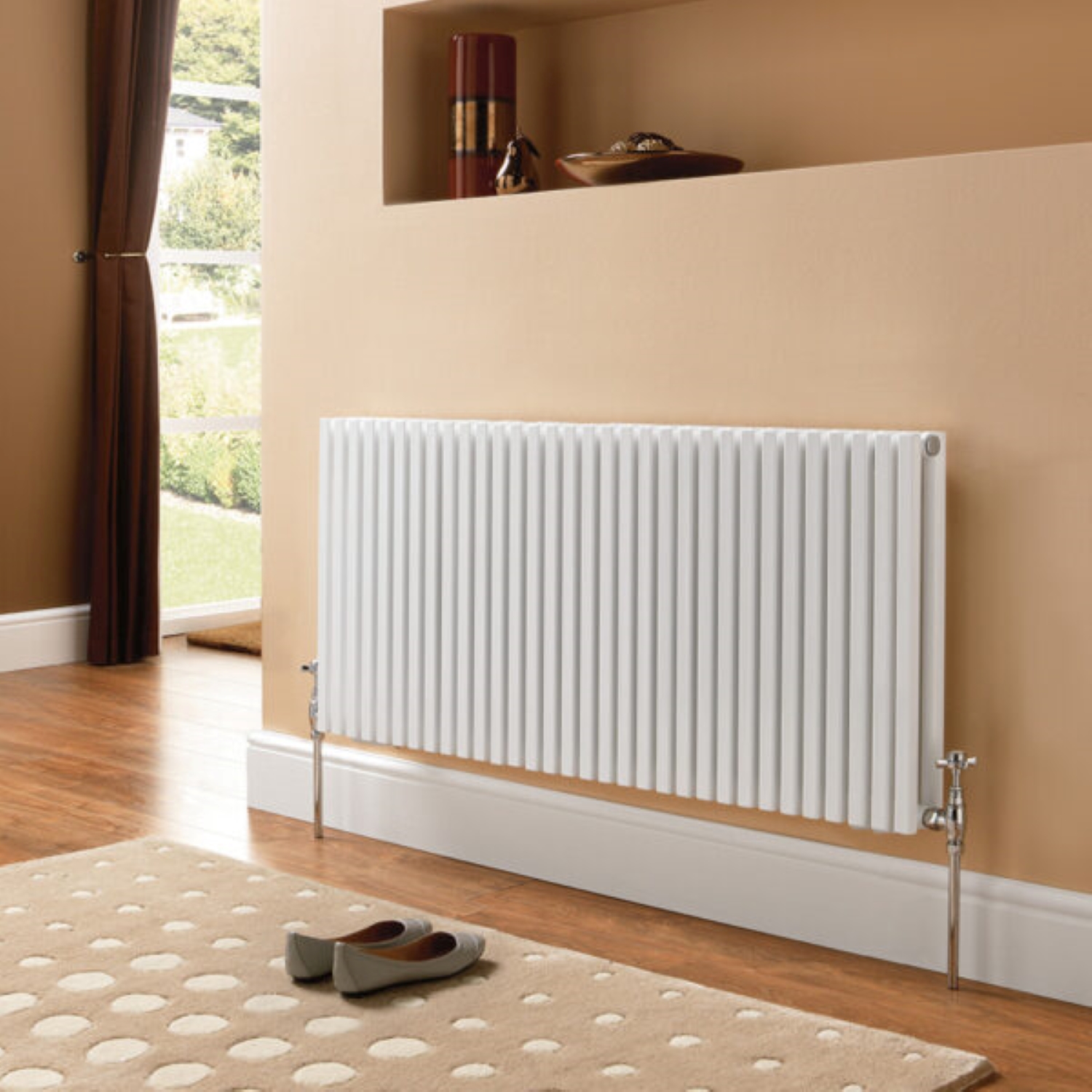

Sheffield White Horizontal Double Panel Radiator 600mm x 535mm
White square bar modern designer radiator 600mm x 535mm
The Sheffield mild steel designer radiator is available in both single and double panel with a large range of vertical and horizontal sizes to suit any space. The 25mm x 25mm D – profile vertical sections give an optimum heat output while still delivering an elegant and contemporary design, with three stock colour options to choose from (white, grey and black) the radiator can blend into the background for a minimalistic look or contrast as a feature in the room.
|
Height (mm) |
Length (mm) |
BTUs (dt60) |
Watts (dt60) |
|
420 |
611 |
3287 |
962 |
|
420 |
839 |
4520 |
1323 |
|
420 |
1067 |
5753 |
1684 |
|
420 |
1219 |
6575 |
1925 |
|
420 |
1371 |
7397 |
2166 |
|
600 |
535 |
4011 |
1174 |
|
600 |
611 |
4584 |
1342 |
|
600 |
839 |
6305 |
1846 |
|
600 |
1067 |
8030 |
2351 |
|
600 |
1219 |
9177 |
2687 |
|
600 |
1371 |
10324 |
3023 |
|
600 |
1599 |
12045 |
3526 |
|
1500 |
383 |
3680 |
1078 |
|
1800 |
383 |
4365 |
1278 |
|
1800 |
611 |
6984 |
2045 |
|
1500 |
231 |
3608 |
1056 |
|
1500 |
383 |
6013 |
1761 |
|
1500 |
535 |
8418 |
2465 |
|
1800 |
231 |
4661 |
1365 |
|
1800 |
383 |
7768 |
2275 |
|
1800 |
459 |
9321 |
2729 |
|
1800 |
535 |
10875 |
3184 |
| Fuel Type | Central Heating |
|---|---|
| Product Type | Radiators |
| Style | Modern |
| Orientation | Horizontal |
| BTU (t60) | 4011 |
| Watts | 1174 |
| Height (mm) | 600 |
| Width (mm) | 535 |
| Inlet Connection | 1/2" |
| Inlet Location: Side Or Underside | Side |
| Pipes Through Wall | Recommended to use Corner Valves |
| Pipes Through Floor | Recommended to use Angled Valves |
| Depth wall to front (mm) | 109 |
| Wall to centre of inlet (mm) | 66 |
| Pipe Centres (mm) | Width of radiator plus valves |
| Colour | White |
| Outer Finish | Powder Coat |
| Core Material | Mild Steel |
| Certification | CE, EN442 |
| Manufactured | Europe |
| Weight | 10.000000 |
| Brand | Geyser |
