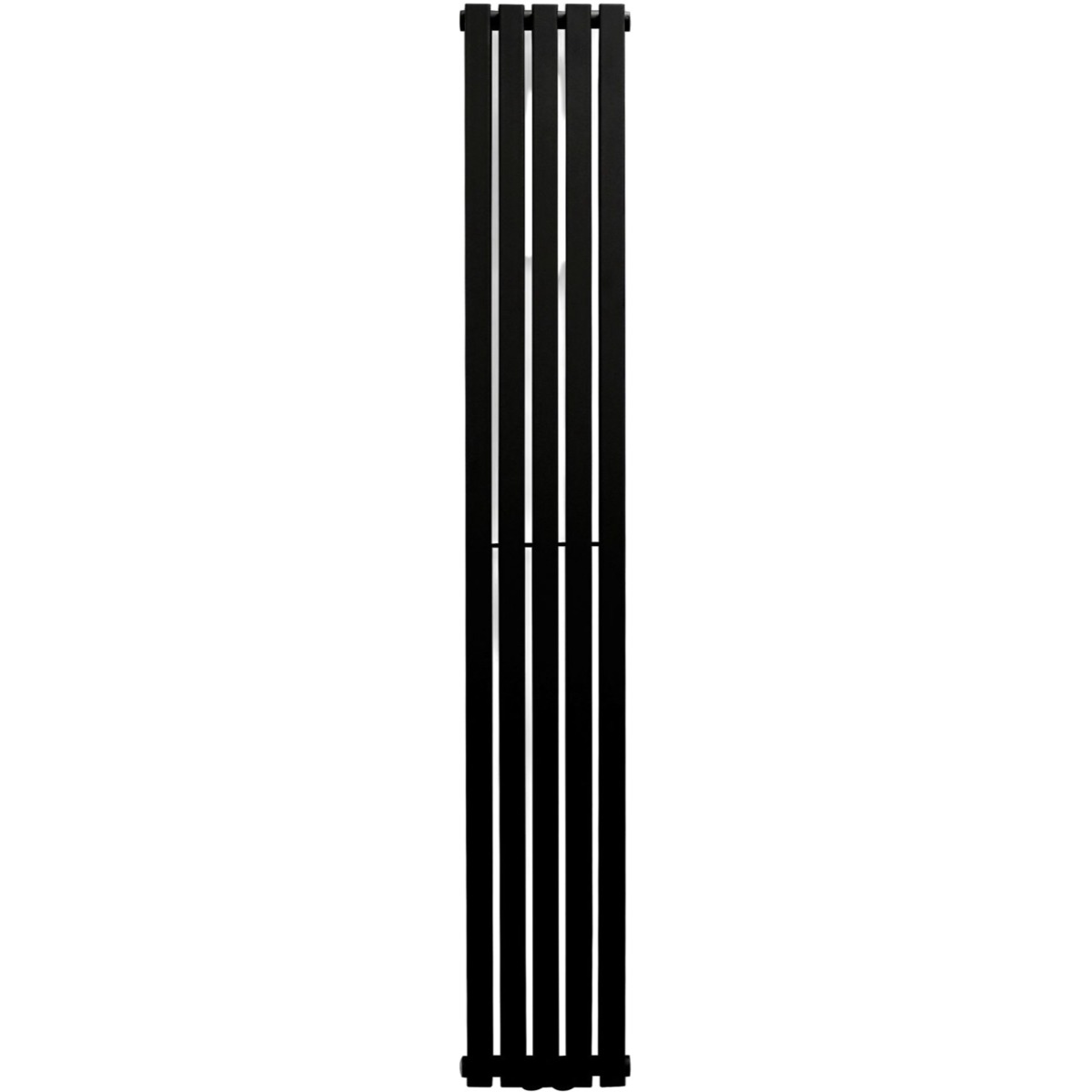

York Black Vertical Single Panel Radiator 1800mm x 268mm
Black flat bar single panel designer radiator 1800mm x 268mm
The York designer radiator is constructed of vertical flat panels for a classic contemporary designer look, with a large range of double panel horizontal models, single panel vertical models and double panel vertical models so there is a suitable option for every room in the house at an affordable price.
Stocked in white, anthracite grey and black, this range is also available in a large range of bespoke colours for a small additional cost.
The double panel models create extremely high heat outputs ranging from 1849 BTUs to 11711 BTUs while maintaining a sleek slimline design with a low projection of only 97mm from the wall.
|
Height (mm) |
Width (mm) |
Heat Output BTUs (dt60) |
Heat Output Watts (dt60) |
|
|
1500 |
268 |
1862 |
545 |
Single |
|
1500 |
374 |
2607 |
763 |
Single |
|
1500 |
480 |
3352 |
981 |
Single |
|
1800 |
268 |
2269 |
664 |
Single |
|
1800 |
374 |
3176 |
930 |
Single |
|
1800 |
480 |
4083 |
1196 |
Single |
|
1500 |
268 |
3232 |
1028 |
Double |
|
1500 |
374 |
4914 |
1439 |
Double |
|
1800 |
268 |
4238 |
1241 |
Double |
|
1800 |
374 |
5933 |
1737 |
Double |
|
1800 |
480 |
7628 |
2233 |
Double |
|
1800 |
586 |
9323 |
2729 |
Double |
| Fuel Type | Central Heating |
|---|---|
| Product Type | Radiators |
| Style | Modern |
| Orientation | Vertical |
| BTU (t60) | 2269 |
| Watts | 664 |
| Height (mm) | 1800 |
| Width (mm) | 268 |
| Inlet Connection | 1/2" |
| Inlet Location: Side Or Underside | Side |
| Pipes Through Wall | Recommended to use Corner Valves |
| Pipes Through Floor | Recommended to use Angled Valves |
| Depth wall to front (mm) | 76 |
| Wall to centre of inlet (mm) | 45 |
| Pipe Centres (mm) | Width of radiator plus valves |
| Colour | Black |
| Outer Finish | Powder Coat |
| Core Material | Mild Steel |
| Certification | CE, EN442 |
| Weight | 7.000000 |
| Brand | Geyser |
